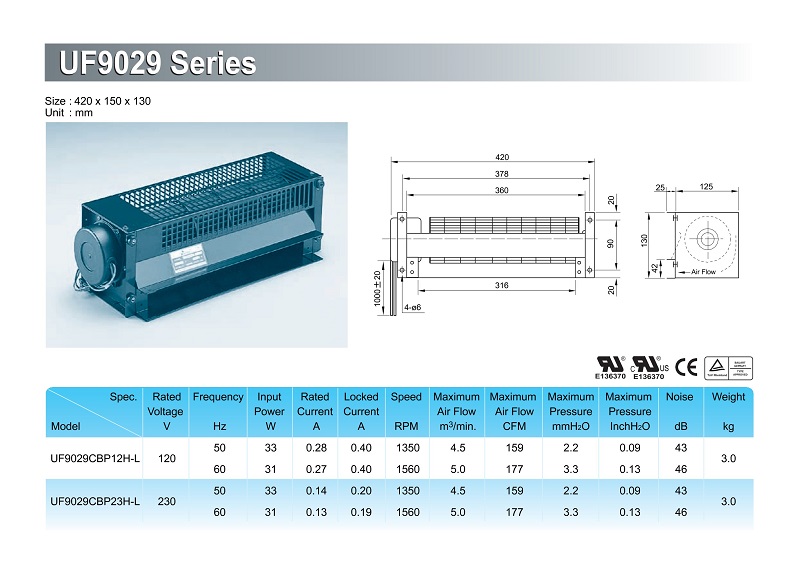

UF9029 Series

UF9029 Series
Frame: Steel with black painting
Impeller: Plastic & Aluminum
Bearing System: Ball bearing or sleeve bearing
Motor: Capacitor start-run or Shaded pole
Protection: Impedance-Protected or Thermally-Protected
Insulation Resistance: Above 100MΩ,DC 500V.
Dielectric Withstand Voltage: AC1, 500V (50/60Hz) one minute
Safety Approval: CE, TUV. (UF9029 has UL, CUL approval)
Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9
